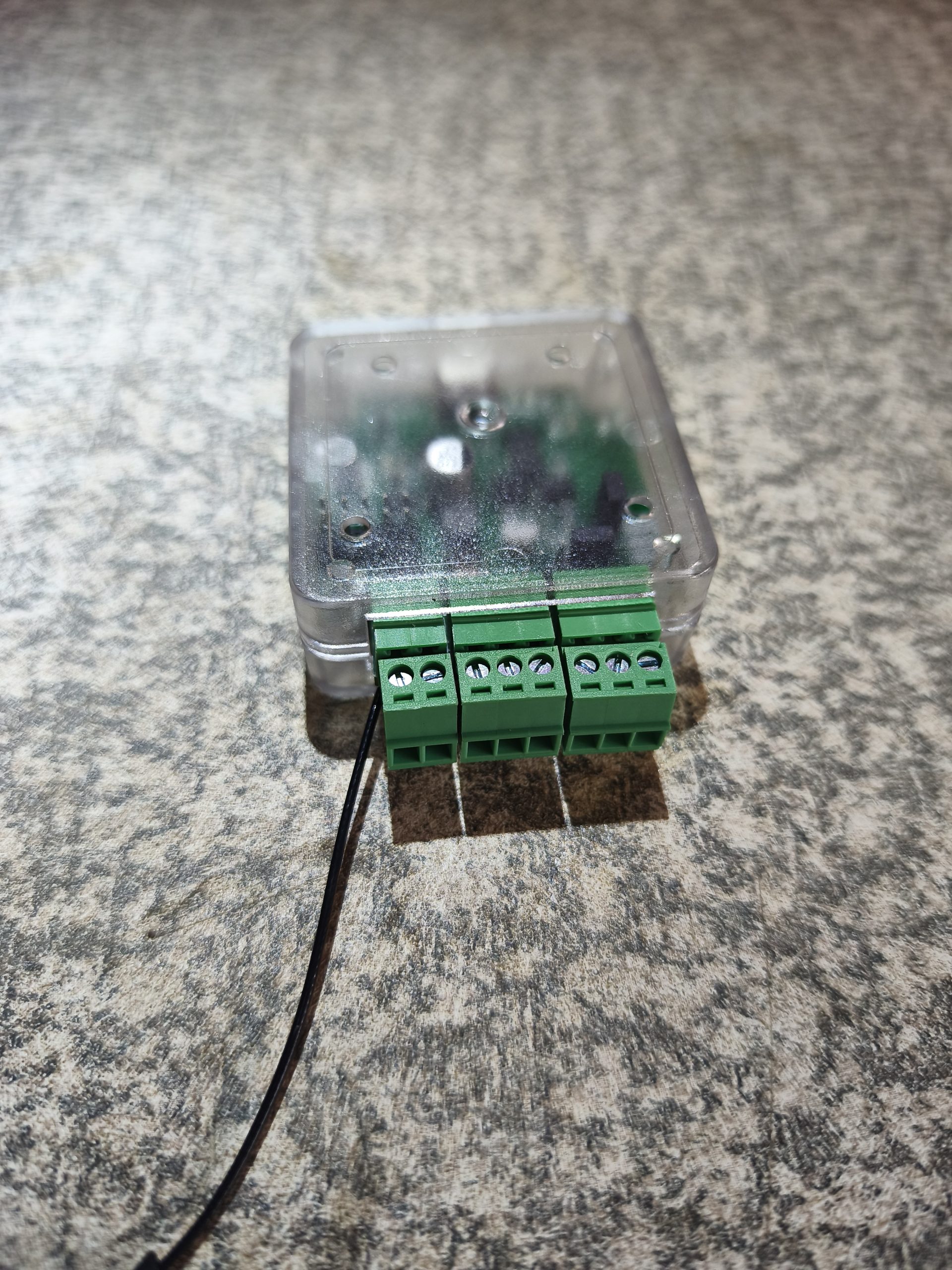

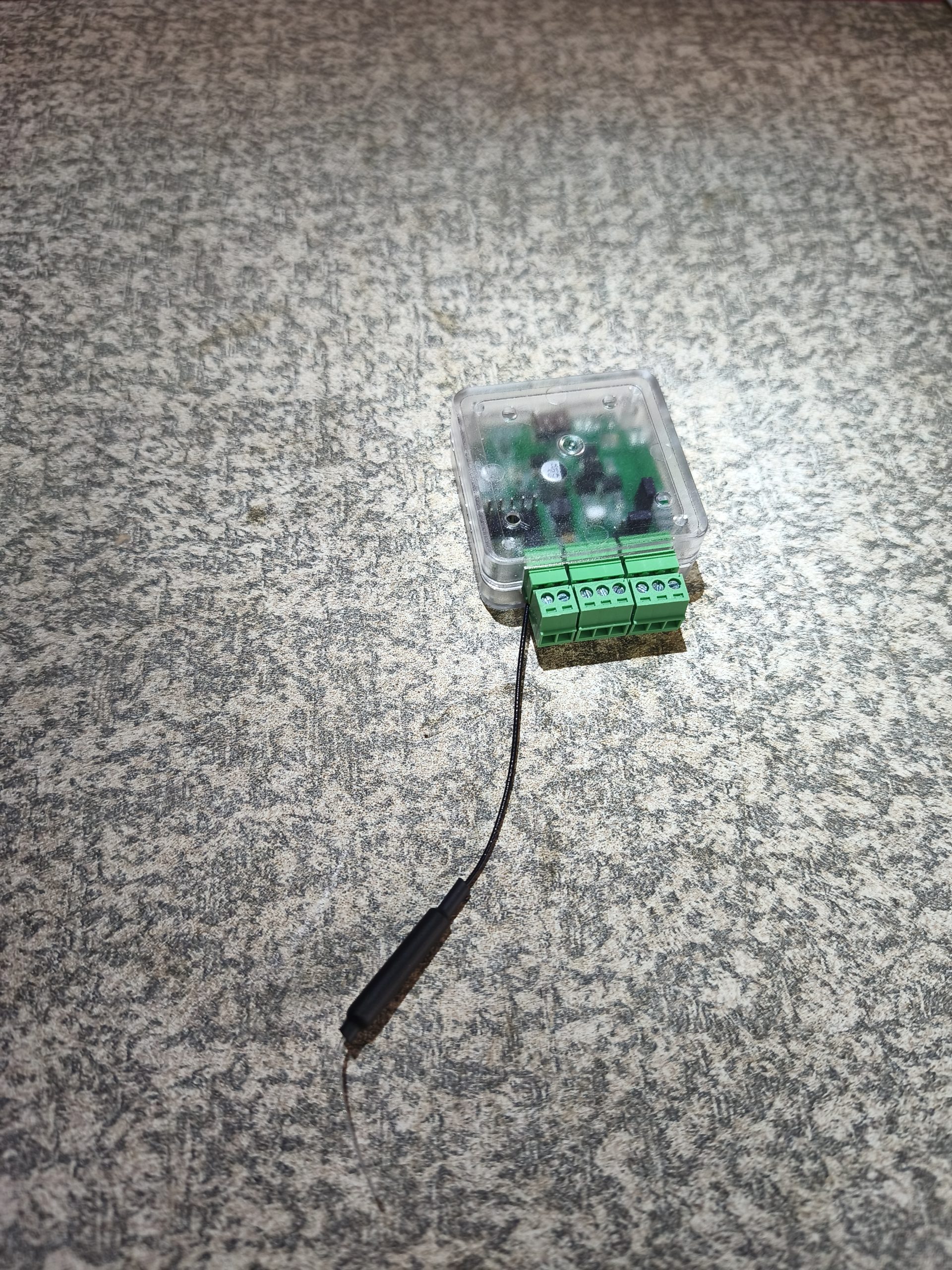

SmartDeyeDongle V5 R4 External Antenna (Local South Africa shipment only)

SmartDeyeDongle V5 R4 External Antenna (Local South Africa shipment only) - Image 2

SmartDeyeDongle V5 R4 External Antenna (Local South Africa shipment only) - Image 3

SmartDeyeDongle V5 R4 External Antenna (Local South Africa shipment only)

Price range: R650.00 through R1,800.00 Incl VAT

Note:

V5 is easier to install because the communication lights will tell you when communication with the inverter is working
Both V5 and V4 have identical functions exposed to Home Assistant and will receive the same firmware updates going forward

This device plugs into the RS485 Port on your Deye/Sunsynk inverter and connects to your WIFI. It exposes the inverter as a plug-and-play device in home asssistant.

Inverter

Clear

SKU: N/A Categories: SDD, Solar

Description

Included:

Version 5 (ESP32C3) Wifi Dongle (pre-flashed with firmware)
Protective case
External WIFI Antenna

Not included (can be added to the order):

Power cables (5.5V – 36V Input accepted on Vin, connect to RSD 12V power on Inverter)
RJ45 Communication cable (CAT5/6)
Network splitter if your inverter only have a shared BMS485 Port

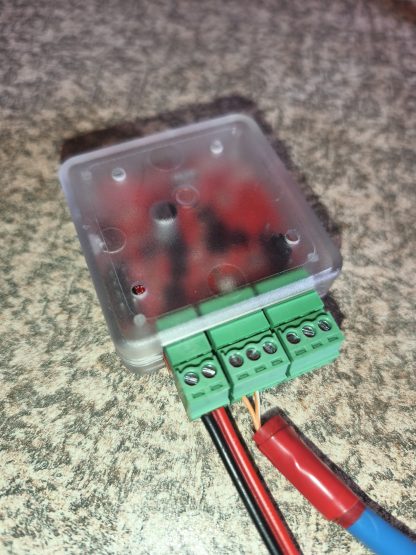

Browse the images on this listing to see the wiring

Supported Inverters:

Models supported (Deye/Sunsynk/Sol Ark and all re-brand hybrid inverters coming out of the Deye Factory in China)
Single/Split phase Low Voltage (40-60V Battery) 18kW/16kW/15kW/14kW/12kW/10kW/8kW/6kW/5kW/3.6kW/3kW
3 Phase Low Voltage (40-60V Battery) 20kW/18kW/16kW/15kW/14kW/12kW/10kW/8kW/6kW/5kW/4kW/3kW
3 Phase High Voltage (200-800V Battery) 80kW/75kW/70kW/60kW/50kW/40kW/35kW/30kW/25kW/20kW/15kW/12kW/10kW/8kW/6kW/5kW

Battery using CAN Communication (to allow the RS485 Dongle to use the inverter BMS RS485)
You need to have a 2.4GHz wifi network at the inverter with reasonable network coverage.
You will need to run your own Home Assistant server (free software https://www.home-assistant.io/installation/ )

Powering the device:

It can either be powered via the 12V output on the inverter (needs power cable) or alternatively **Note*,

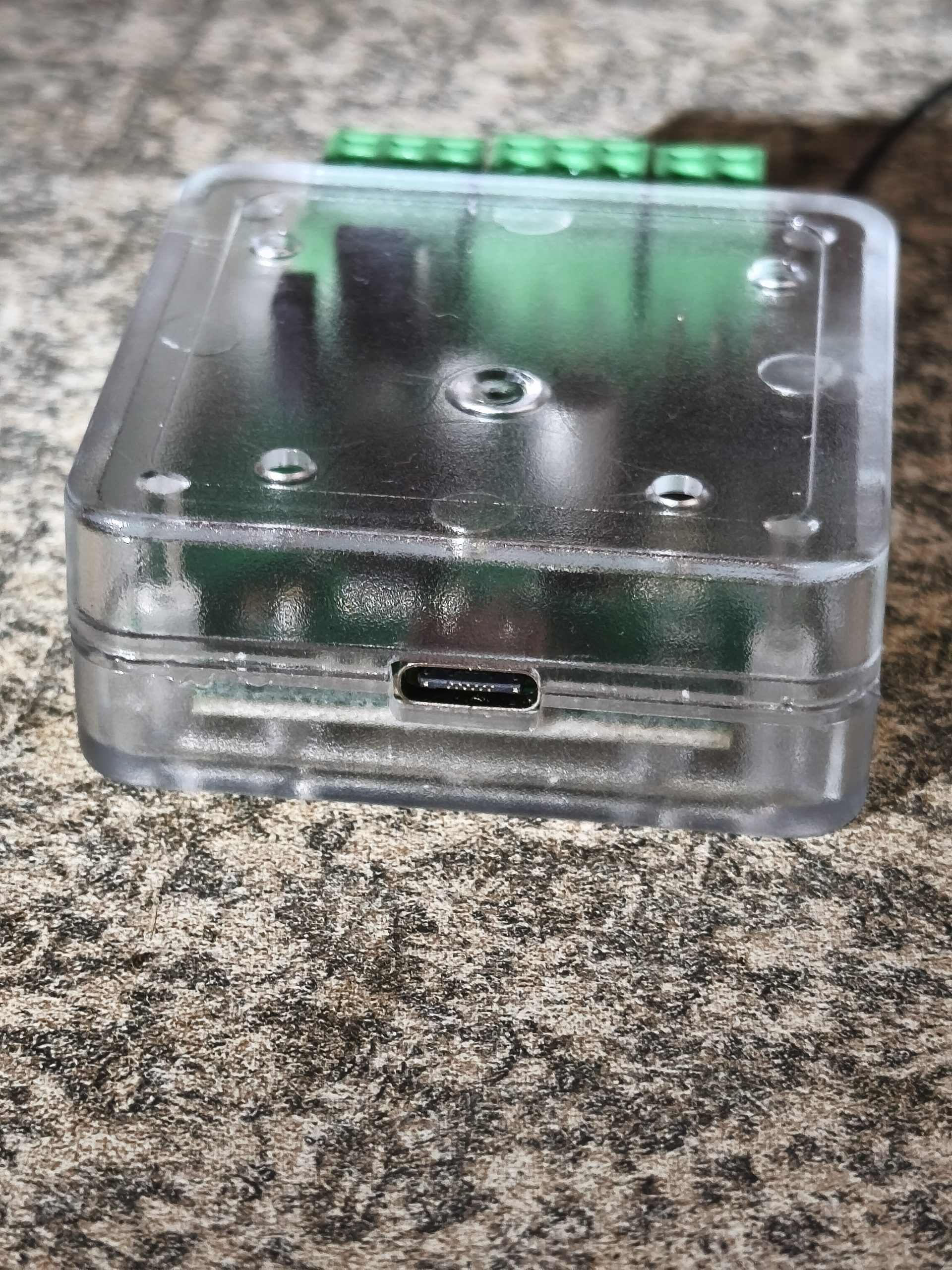

You need to have a USB type C phone charger to supply power
Take care to only connect one power source

The DeyeSolarDesktop will give you a plug-and-play starting point to monitor your solar system https://github.com/tomatensaus/DeyeSolarDesktop

**Note: When powering directly from the inverter 12V supply please observe the correct polarity. The SmartDeyeDongle can take input from 5.5-36V DC.

The 8kW inverter supplies + 11, and – 12 on the function port (positive on pin 11 and negative on pin 12) on the new generation this is (RSD Positive 17 , Negative 18)

The 16kW inverter supplies RSD_out 12V on pin +15 & – 16 on the function port

The 12kW inverter supplies RSD_out 12V on pin +7 & – 8 on the function port (On the right)

The 3/5/6 kW documentation makes no mention of any 12V output, use an old phone USB C . Alternatively an old router power supply on the Dongle input takes 5.5V-36V

Additional information

Weight	0.2 kg
Inverter	Single Phase 3.6kW, Single Phase 5kW, Single Phase 6kW, Single Phase 8kW, Single Phase 10kW, Single Phase 12kW, Single Phase 16kW, 3 Phase 6kW, 3 Phase 8kW, 3 Phase 10kW, 3 Phase 12kW, 3 Phase 20kW LV, 3 Phase 20kW HV, 3 Phase 50kW HV, 5kW Master&Slave, 8 kW Master&Slave, 16 kW Master&Slave, 8 kW X3 3Phase, 5 kW X3 3Phase, 12kW 3Phase Master&Slave
